Description

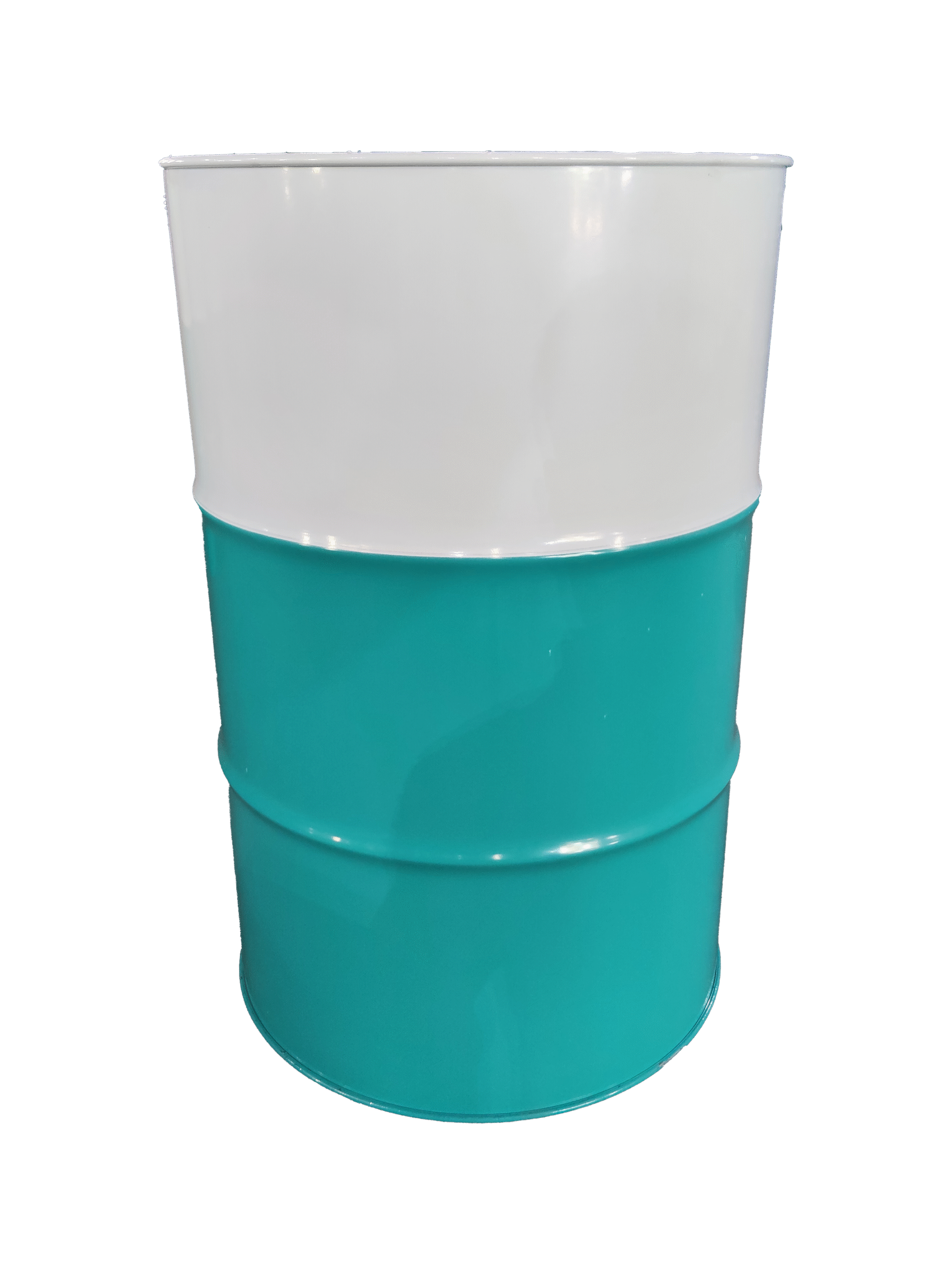

The tall closed-top steel drum with a capacity of 220 liters is manufactured from cold-rolled steel in accordance with JIS G3141 SPCC – SD, ensuring high mechanical strength and excellent pressure resistance. Featuring a fully welded body and triple-seamed top and bottom, this drum includes an internal Epoxy coating, making it suitable for storing food, chemicals, solvents, petroleum products, and more. It supports dual-side color coating and custom logo printing to meet both domestic and export standards.
Technical Specifications
| Material | Cold-rolled steel in accordance with JIS G3141 SPCC - SD |
| Thickness (Body/Lid/Bottom) | 0.8 / 0.8 / 0.8 ± 0.05 mm (optional) |
| Nominal Capacity | 220 liters |
| Leak Test Pressure | 0.5 kgf/cm² |
| Height | 940 ± 5 mm |
| Inner Diameter | 567 ± 3 mm |
| Weight | 14.2 ± 0.3 kg (optional range: 14 kg – 17 kg) |
| Construction | Welded seam body, triple-seamed top and bottom, 2 large rolling hoops, 5 small hoops (optional) |
| Internal Condition | Coated with Epoxy lining |
| Coating Thickness | > 15 µm |
| Color | Custom two-sided coating (inside and outside) |
| Adhesion Standard | ASTM D 3359-93 |
| Logo | Customized upon request |
