Description

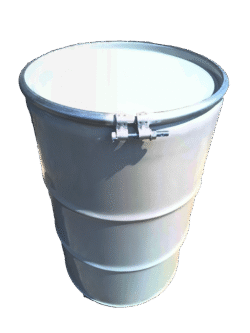

The 208-liter open-top steel drum is manufactured from cold-rolled steel that meets the JIS G3141 SPCC – SD standard (Japan), ensuring high durability and an attractive appearance. The product is produced on a fully automated production line, featuring an auto-electric welded body, triple-seamed top and bottom for maximum strength, and a durable, easy-to-use bolt ring clamp.
The interior is coated with EPOXY paint, which is safe for storing food and chemicals, and meets export standards. Custom color painting, logo printing, and text labeling are available upon request. This drum is suitable for various industries and purposes, including food, chemicals, petroleum, and more.
Technical Specifications
| Material | Cold rolled steel according to JIS G3141 SPCC - SD standard |
| Thickness (Body/Lid/Bottom) | 0.9/1.0/0.9 ± 0.05mm |
| Filling Capacity | 208 liters |
| Air Test | 0.5 kgf/cm² |
| Height | 885 ± 5 mm |
| Internal Diameter | 567 ± 3 mm |
| Weight | 17.2 ± 0.3 kg |
| Shape | Electrical welding body, the head and bottom cover rolled 3 times, 2 main waves, clamp ring or bolt ring (optional) |
| Inside Drum | Clean |
| Thickness | > 15 µm |
| Color | Outside Option / Inside Epoxy |
| Adhesion | ASTM D 3359-93 |
| Logo | Optional |
