Description

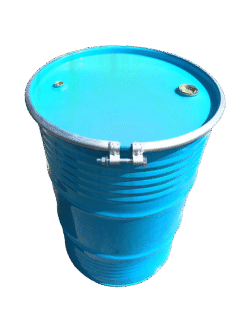

The 208-liter steel drum is made from cold-rolled steel that meets the JIS G3141 SPCC – SD standard (Japan), ensuring high durability and a refined appearance. The product is manufactured on a fully automated production line, featuring an auto-electric welded body, triple-seamed top and bottom for added strength, and a durable, easy-to-use clamping ring.
Custom color painting, logo printing, and text labeling are available upon request. This drum is suitable for a variety of industries and purposes, including food, chemicals, and petroleum. It meets international export standards.
Technical Specifications
| Material | Cold rolled steel according to JIS G3141 SPCC - SD standard |
| Thickness (Body/Lid/Bottom) | 0.8/0.8/0.8 ± 0.05mm (optional) |
| Filling Capacity | 208 liters |
| Air Test | 0.5 kgf/cm² |
| Height | 889 ± 5 mm |
| Internal Diameter | 567 ± 3 mm |
| Weight | 15.5 ± 0.3 kg (optional from 14kg – 17kg) |
| Shape | Welded seam body, triple-seamed ends, 2 large rolling hoops, clamp ring or bolt ring (optional) |

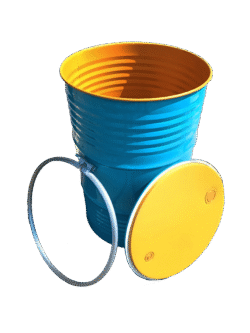

| Inside Drum | Clean, with internal Epoxy coating |
| Thickness | > 15 µm |
| Color | Outside / Inside |
| Adhesion | ASTM D 3359-93 |
| Logo | Optional |
