Description

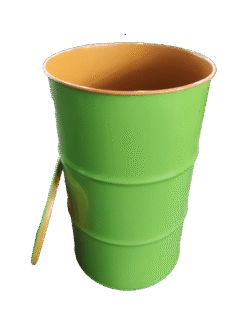

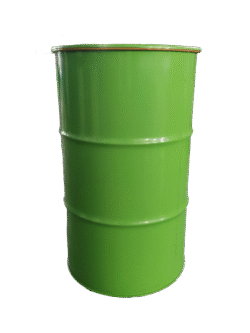

The 200-liter steel drum is manufactured from cold-rolled steel conforming to JIS G3141 SPCC – SD standards (Japan), ensuring high durability and aesthetic appeal. The product is fabricated on a fully automated production line, with an auto-electric welded body, triple-seamed top and bottom, and a durable, easy-to-use clamping ring.
The interior is coated with EPOXY paint that is safe for food and chemicals, meeting export standards. Custom color painting, logo printing, and text labeling are available upon request, making it suitable for a wide range of industries and applications, such as food, chemicals, petroleum, and more.
Technical Specifications
| Material | Cold-rolled steel in accordance with JIS G3141 SPCC - SD standard |
| Thickness (Body/Lid/Bottom) | 0.9 / 0.9 / 0.9 mm |
| Nominal Capacity | 200 liters |
| Overflow Capacity | 214 liters |
| Leak Test Pressure | 0.5 kgf/cm² |
| Height | 945 ± 5 mm |
| Inner Diameter | 545 ± 3 mm |
| Drum Net Weight | 17 ± 0.3 kg |
| Contruction | Welded seam body, triple-seamed ends, 2 large rolling hoops (clamp rings) |
| Internal Condition | Clean, with internal Epoxy coating |
| Coating Thickness | > 15 µm |
| Color | Optional |
| Adhesion Standard | ASTM D 3359-93 |
| Curing Temperature | 165°C |
| Logo | As per customer’s request |
