Description

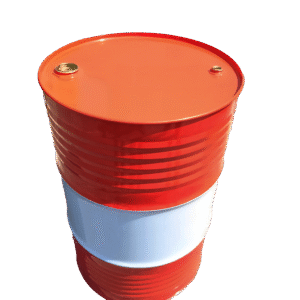

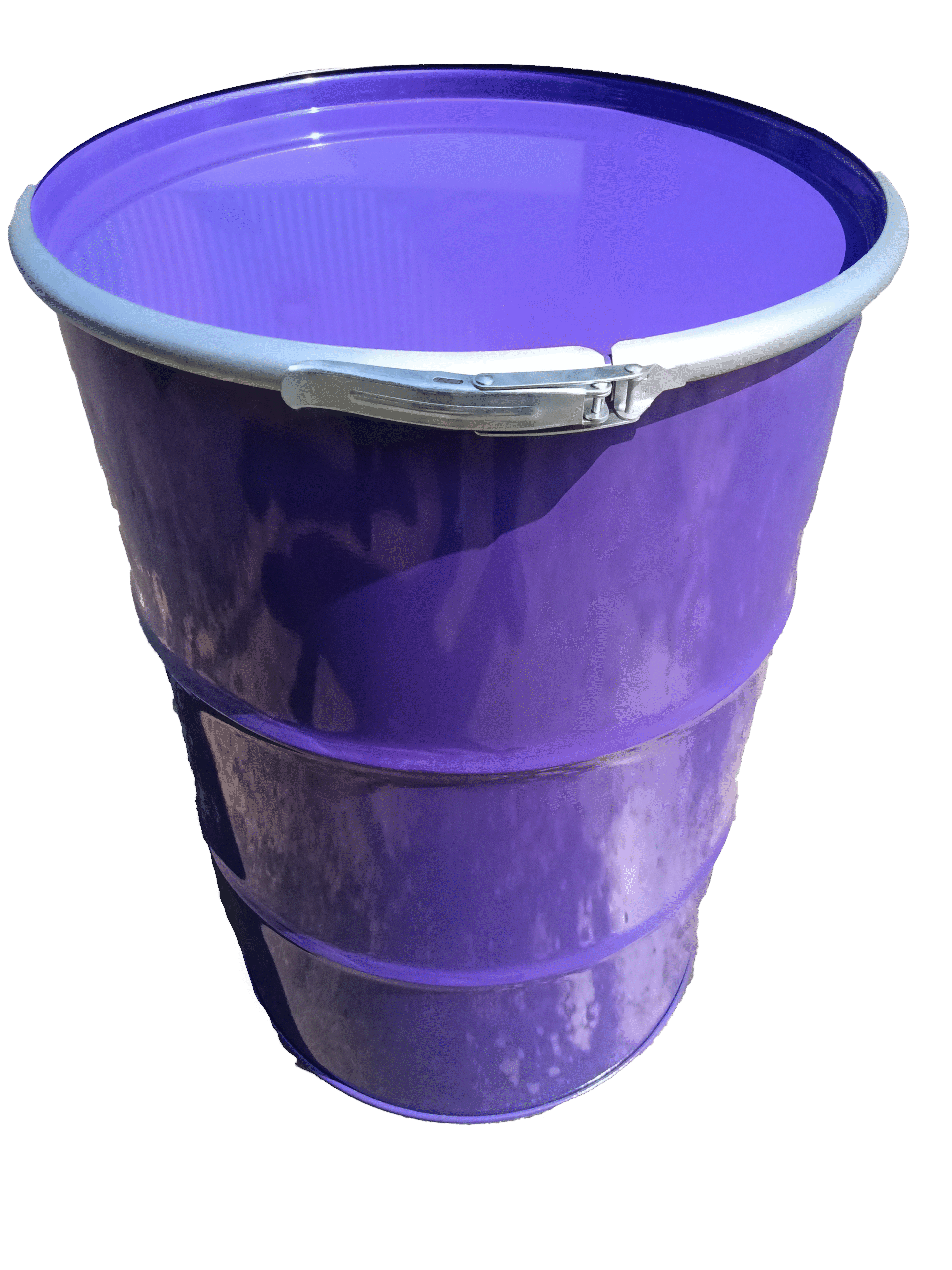

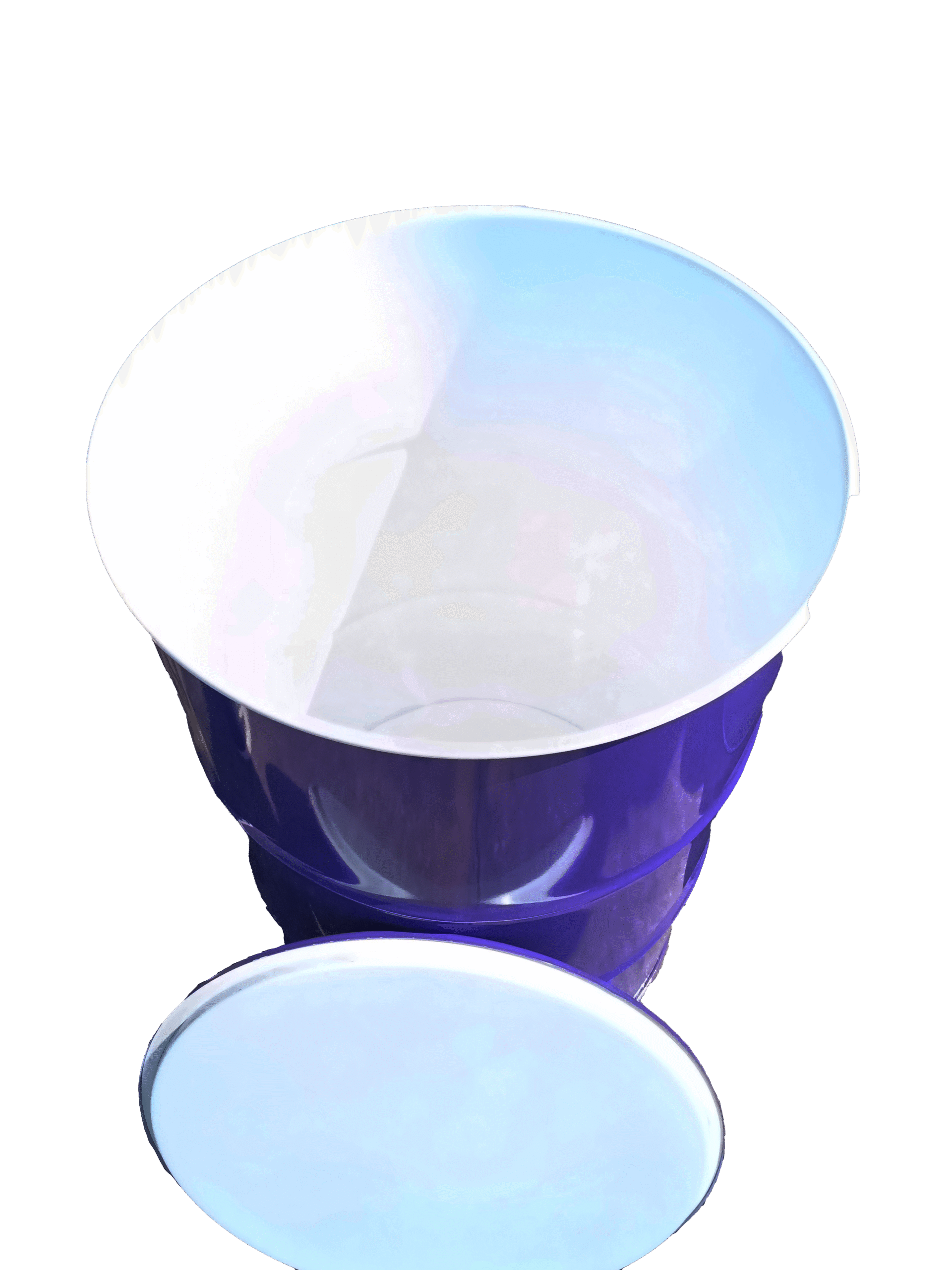

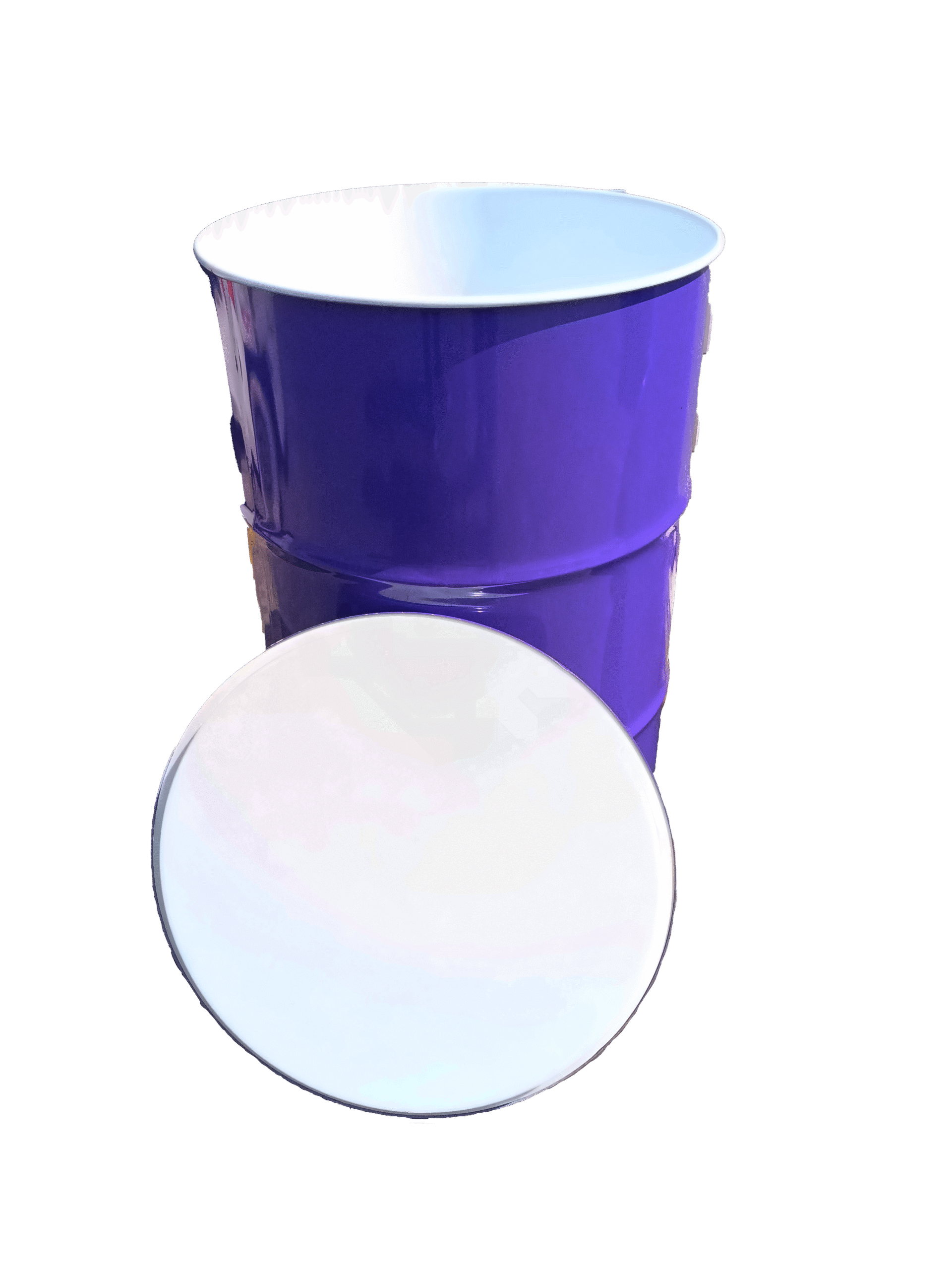

The 208-liter steel drum is manufactured from cold-rolled steel conforming to JIS G3141 SPCC – SD (Japan), ensuring high durability and a clean, professional appearance. The product is fabricated using a fully automated production line, featuring an electrically welded body and triple-seamed top and bottom for enhanced strength. Durable clamp or bolt rings provide secure closure and easy handling.
Custom color coating, logo printing, and text labeling are available to meet specific customer requirements. This drum is ideal for various industries such as food, chemicals, petroleum, and more. It complies with export standards.
Technical Specifications
| Material | Cold-rolled steel in accordance with JIS G3141 SPCC - SD (Japan) |
| Thickness (Body/Lid/Bottom) | 0.8 / 0.8 / 0.8 ± 0.05 mm (optional) |
| Nominal Capacity | 208 liters (customizable: 208L – 220L) |
| Leak Test Pressure | 0.5 kgf/cm² |
| Height | 208 liters (customizable: 208L – 220L) |
| Inner Diameter | 567 ± 3 mm |
| Weight | 15.5 ± 0.3 kg (optional: 14 kg – 17 kg) |
| Construction | Welded seam body, triple-seamed ends, 2 large rolling hoops, clamp ring or bolt ring (optional) |
| Internal Condition | Clean |
| Coating Thickness | > 15 µm |
| Color | Custom coating outside |
| Adhesion Standard | ASTM D 3359-93 |
| Logo | Customized upon request |
