Description

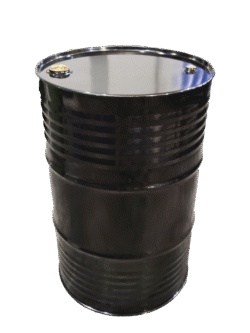

The closed-top steel drum with a capacity of 208–220 liters is made from high-quality cold-rolled steel in compliance with JIS G3141 SPCC – SD standards, offering excellent durability and pressure resistance. The drum body is fully welded, with triple-seamed top and bottom edges for enhanced safety during transport and storage. The interior is coated with food-grade Epoxy, making it suitable for industries such as food, chemicals, and petroleum. Custom color coatings and logo printing are available to meet export standards and customer needs.
Technical Specifications
| Material | Cold-rolled steel in accordance with JIS G3141 SPCC - SD |
| Thickness (Body/Lid/Bottom) | 0.8 / 0.8 / 0.8 ± 0.05 mm (optional) |
| Nominal Capacity | 208 – 220 liters (optional) |
| Leak Test Pressure | 0.5 kgf/cm² |
| Height | 885 ± 5 mm (optional) |
| Inner Diameter | 567 ± 3 mm |
| Weight | 14.2 ± 0.3 kg (optional range: 14 kg – 17 kg) |
| Construction | Welded seam body, triple-seamed top and bottom, 2 large rolling hoops, 5 small hoops (optional) |
| Internal Condition | Coated with food-grade Epoxy lining |
| Coating Thickness | > 15 µm |
| Color | Custom color coating (inside and outside) |
| Adhesion Standard | ASTM D 3359-93 |
| Logo | Customized upon request |
